50kg Checkweigher | In Line Checkweighing System | Intermediate Checkweigher
Description
Our 50KG Checkweigher is a critical solution for ensuring weight accuracy in heavy-duty packaging operations. It safeguards your brand by preventing underweight and overweight products from reaching customers, reduces material giveaway, and ensures strict compliance with trade regulations. This system enhances production efficiency, minimizes waste, and provides auditable data for quality assurance.
Specifications
| NO. |
ITEM |
NOTE |
| 1 |
Frame Material |
SS304 |
| 2 |
Weighing Range |
25kg |
| 3 |
Minimum Scale |
0.001kg |
| 4 |
Max Accuracy |
±10g |
| 5 |
Max Speed |
30pcs/min |
| 6 |
Parameter Setting |
auto setting by intelligent product self-study |
| 7 |
Weighing Belt Width |
500mm |
| 8 |
Weighing Belt Length |
800mm |
| 9 |
Belt Height |
650-750mm |
| 10 |
Moving Direction |
From left to right when facing touch screen |
| 11 |
Alarm Mode |
sound-light alarm |
| 12 |
Reject Mode |
Roller push rod (optional) |
| 13 |
Power |
AC220-240V 1Phase 750W |
| 14 |
Working Environment |
Free of obvious vibration and air flow |
Features
1. High-speed load cell with excellent frequency response.
2. FPGA hardware filter with intelligent algorithm, excellent weighing processing speed.
3. Intelligent self-learning technology, automatic setting of weighing parameters, easy to use.
4. Ultra-fast dynamic weight tracking and automatic compensation technology can effectively improve the detection stability.
5. Friendly operation interface on touch screen, easy to operate.
6. 40 product presets, easy to edit and switch.
7. Large-capacity sorting log, with data output traceability function.
8. CNC machining of structural components with excellent dynamic stability.
9. High quality SS304 frame, strong and durable;
10. Optional function such as RS232 interface,USB interface,Ethernet interface,printer, waterproof etc.

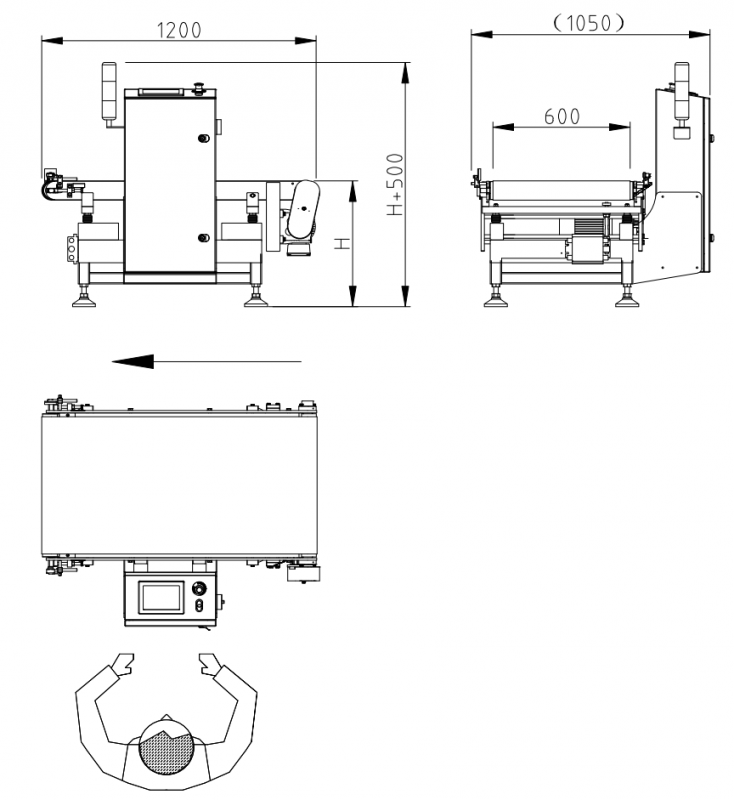

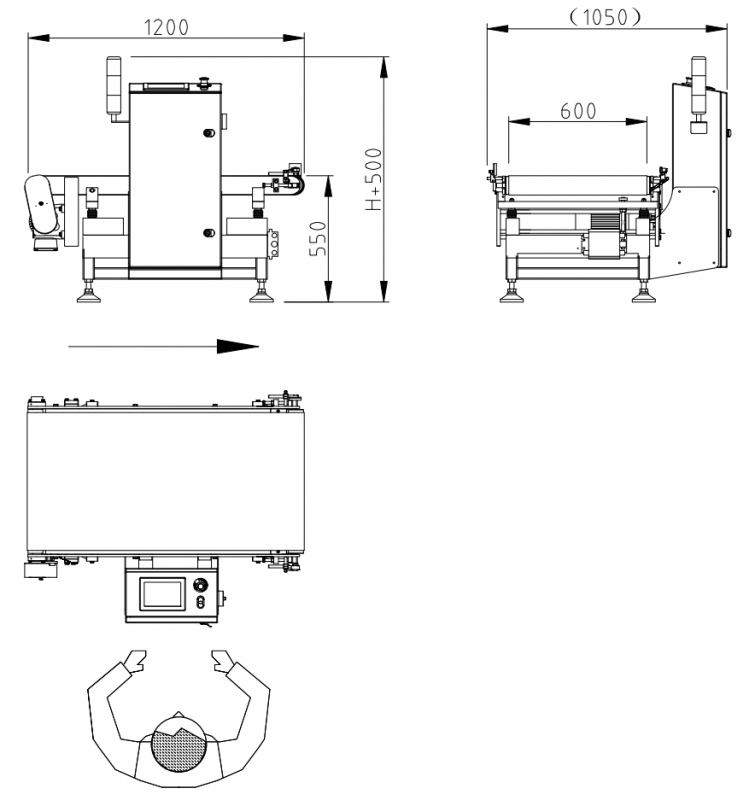

Dimensional Drawing
